UV Sterilizer
It adopt Stainless Steel as the main material with high-purity quartz tube and high-performance low-voltage quartz UV lamp disinfection, has strong setrilization, long sevice time, reliable, and its bactericidal efficiency more than 99%, imports of light tube life more than 8000hours, has been widely used in pharmaceutical, food, beverage, living life, electronics and other fields.
Working Theory
Ultraviolet light is invisible, exists in the outside of ultraviolet spectrum, so it is called ultraviolet radiaction. According to a different wavelength range, they are cut into A, B, C three kinds of bands, including the C-band UV wavelength between 240-260nm, which is the most effective sterilizer band, band’s strongest point it the wavelength of 253.7nm.
Maintenance:
- The best working condition
- water temperature: 5-50 centidegree
- relative temperature: no more than 93% (25 centidegree)
- voltage: 220V ± 10V, 60Hz
- Regular inspections to ensure the normal operation of UV lamps.
- Regular cleaning
- Exchange new UV lights
- Prevention of UV radiation
Details:
- UV sterilizers use the 304# stainless steel inside and outside.
- The main internal and external are polished to enhance the UV irradiance.
- Assembling with the high purity quartz tube, matching with the appropriation uv lamp tube for water treatment, sterilization strong, long time, stable and reliable operation, it’s bactericidal efficiency is more than 99%.
- Lifetime is more than 8000 hours.
- Widely applied in medicine, food, drink, life, life and electronics and other fields.

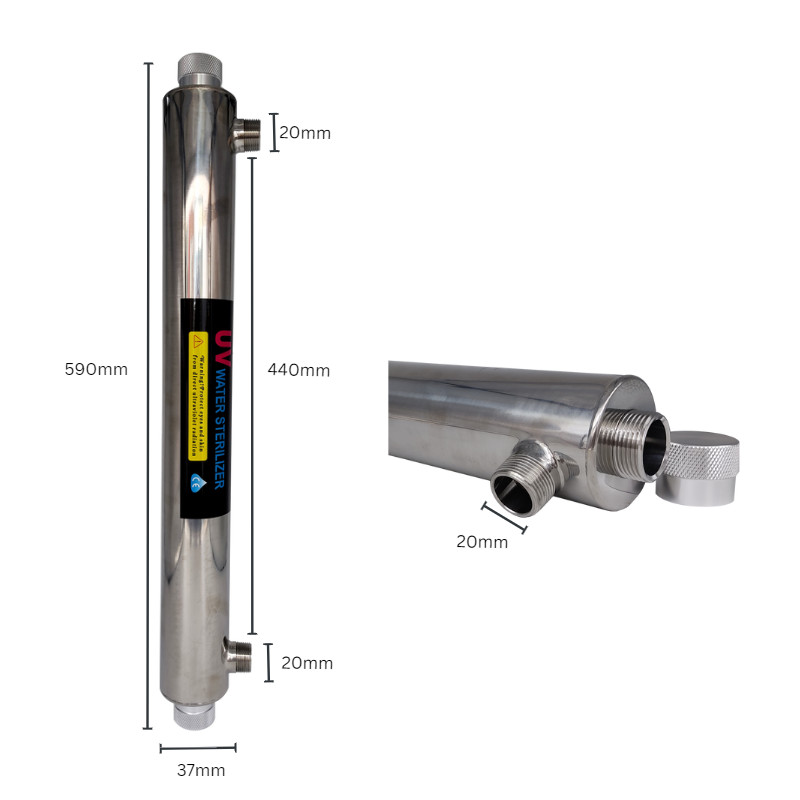

| Type | Amount of water treatment(gpm) | Tube equipment | Inlet/Outlet(mm) | Size(mm)L*D*H | Average lifetime(h) | Material |
|---|---|---|---|---|---|---|
| UV-25W | 6G | 25W*1 | 15 | 590*37*37 | 9000 | 304 |
