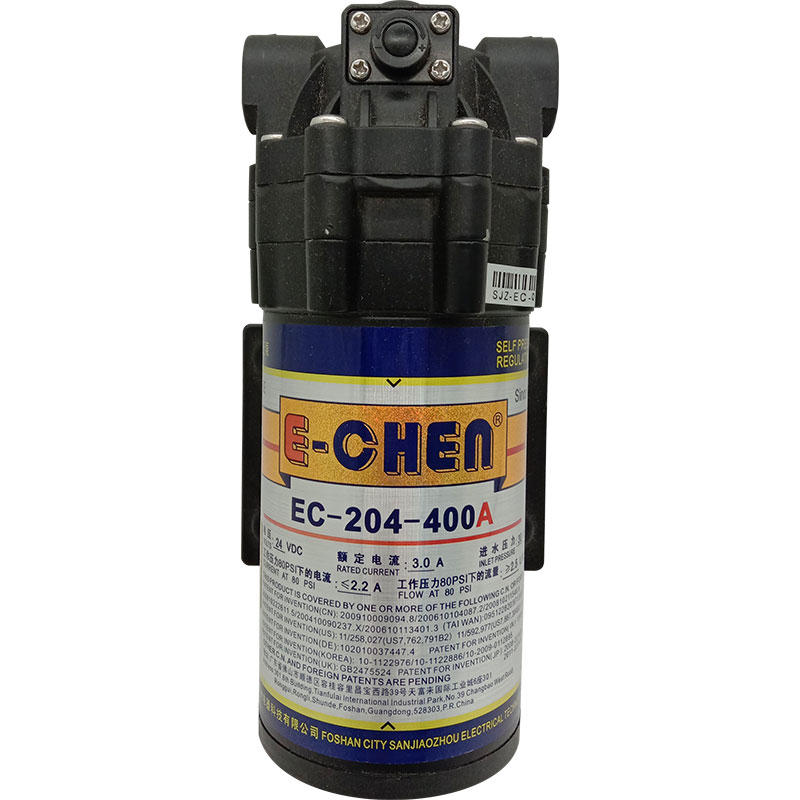

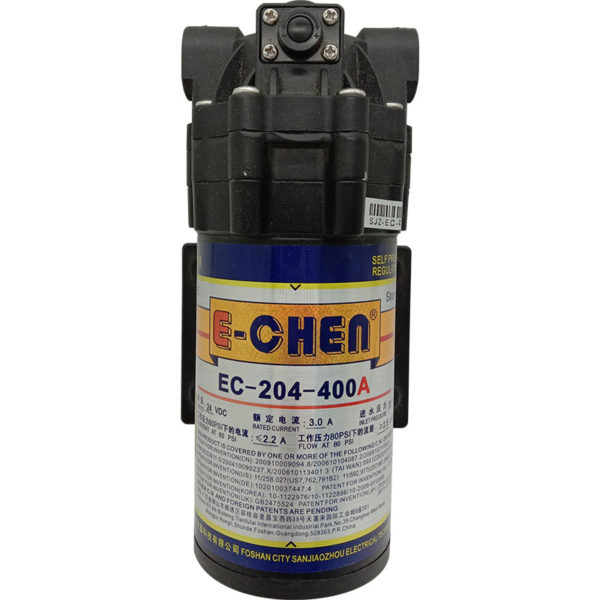

EC-204-400A Diaphragm Booster Pump
RM490.00
| Model | EC-204-400A |
|---|---|

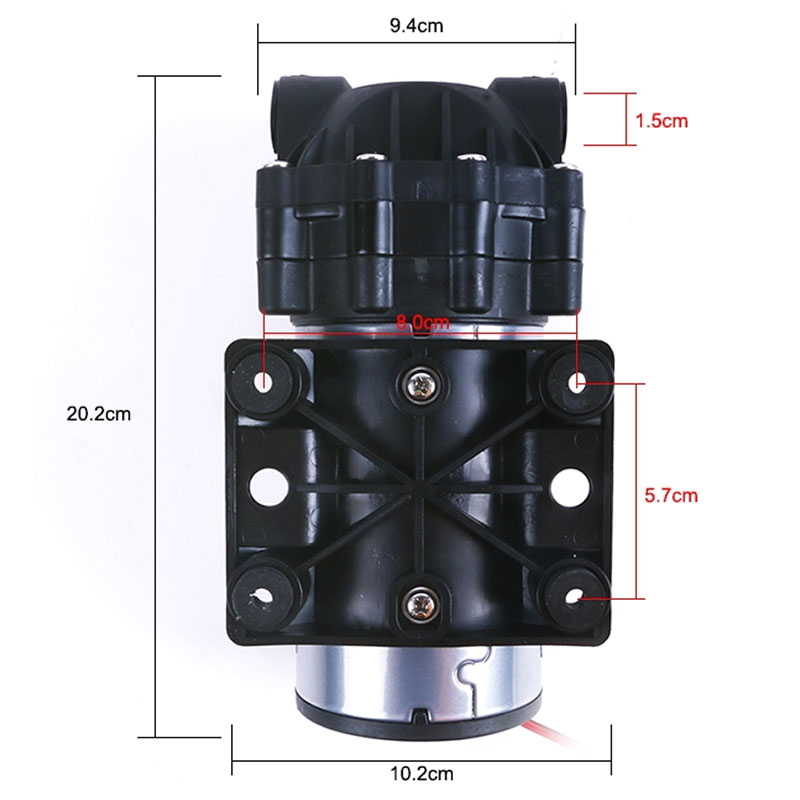

| Dimensions (mm) | 205x103x97 |
| Voltage | 24VDC |
| Capacity | 400G |
| n/Out Thread | 3/8″ |
| Input water pressure | 30psi |
| Working pressure | 80psi |
| Working flow (ml/min) | >=2500 |
| Pressure relief pressure | 150(+-10)psi |
| AMPs | 3.1A |
| Rated Flow | 2.7 LPM |
| Open Flow | 4 LMP |
| Max Pressure | 0.9-1.0 Mpa |
| Max AMPs | 3.2 A |
Description
Related products
Horizontal CNP Pumps CHL2-40LDWSC(0.75HP)
Horizontal CNP Pumps CHL4-40DWSC (1.0HP)
Horizontal Multi-Stage Water Booster Pump CHLF(T)4-40 dwsc-1-0hp
CNP CHLF(T)4-40 horizontal multi-stage centrifugal pump, 230V. The CNP steel pump unit designed for water transfer and pressure boosting in both domestic and industrial applications.
Mainly used for family central air conditioning circulation and industrial liquid transmission such as mineral water, soft water, purification system, such as light oil circulation and pressurization.
- Small central air condition
- The cooling system
- Industrial cleaning
- Purification of water treatment
- Aquaculture
- Fertilization/measurement system
- Environmental applications
- Domestic booster pump
