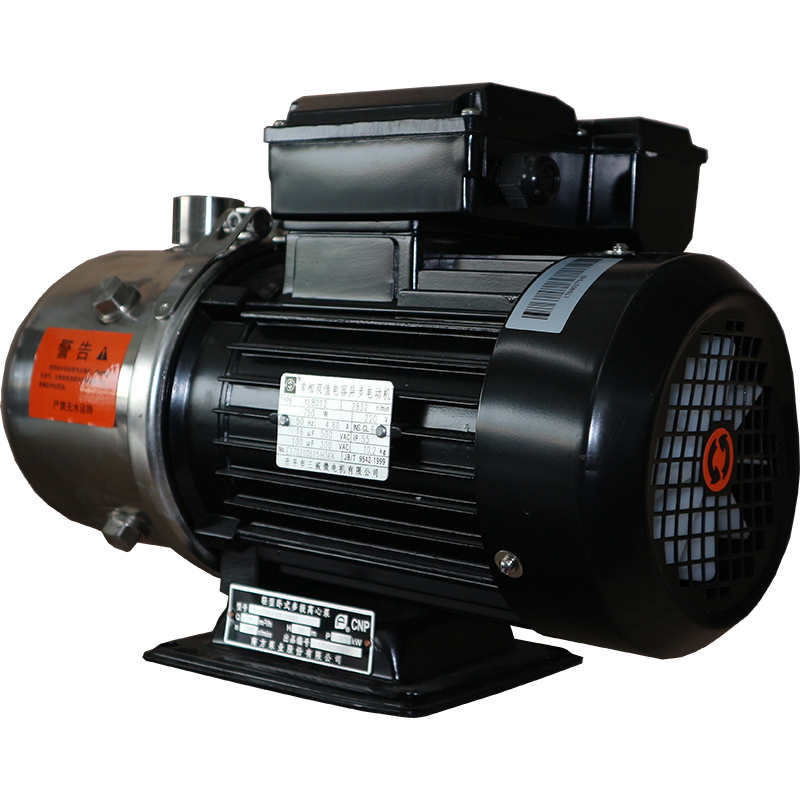

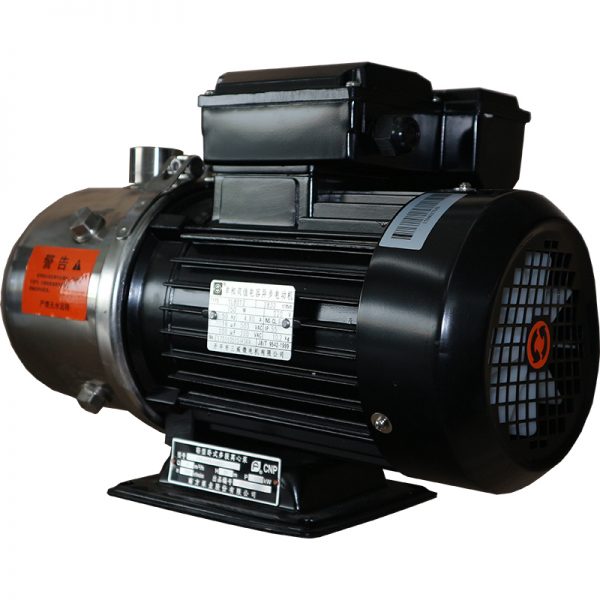

Horizontal CNP Pumps CHL2-40LDWSC(0.75HP)

Category: .

Product Description

CNP Home Pump Water Pump CHL2-40LDWSC(0.75HP)

Provides consistant, reliable water pressure throughout your house even with multiple taps running concurrently.

  • Segmental multistage stainless steel pump.
  • Cast iron inlet and outlet.
  • Advanced welding equipment, heat treatment.
  • High strength, no deformation, long life, safe.
  • Mechanical seal to ensure watertight in long-time continuous operation.
  • Aluminium frame; low-noise and less-vibration and high durability and reliable.
  • Insulation class F, protection IP55, continuous duty.
  • Single-phase with thermal protector from T1 to ensure safety and convenience.

Features and Benefits

  • Reliable and long-lasting
  • Efficient, energy-saving
  • Quiet operating system
  • Dry-running protection feature
  • Compact design
  • Easy installation

Application

  • Pressure boosting for the water on processing line.
  • Water treatment
  • Air-conditioning system
  • Heating and cooling water on industrial processing line.
  • Water supple and pressure boosting (drinking water, weak chlorine water)
  • Fire-fighting system
  • Convey think, clean, non-flammable and non-explosive liquid without solid granules and fibers.

Specification

CNP 0.75HP Automatic Multi Stage Water Pump. 【for 4 – 6 Bathroom】
Model : CHL2-40LDWSC
Voltage : 240V 50Hz
Power : 0.75Kw / 0.75HP
Ampere : 3.8A
Pipe Connection Inlet & Outlet : 1″ / 25mm
Flow Capacity : 2000L/hour
Max. Head : 29M
Max. Pressure : 10 Bar
Speed : 2800rpm
Weight : 14kg
Parameter data:




√ Maximum ambient temperature:40 Celsius

√ Maximum operating pressure:10bar

√ Maximum inlet pressure by the maximum operating pressure limit

√ Permissible liquid temperature up to 110 degree

√ delivery no partical and clean water
