Introduction
- Multiple programs available for different value and coin type Maximum 4 channel programmable.
- Can be re-programs by internal setup function.
- High Sensitivity / Fast accept coin inserted.
Setting instruction
Pre-start
- For the best result, turn on power for 10 minutes before programming.
- 15 pieces each coin type. New and Old minted mix up.
Program Set up

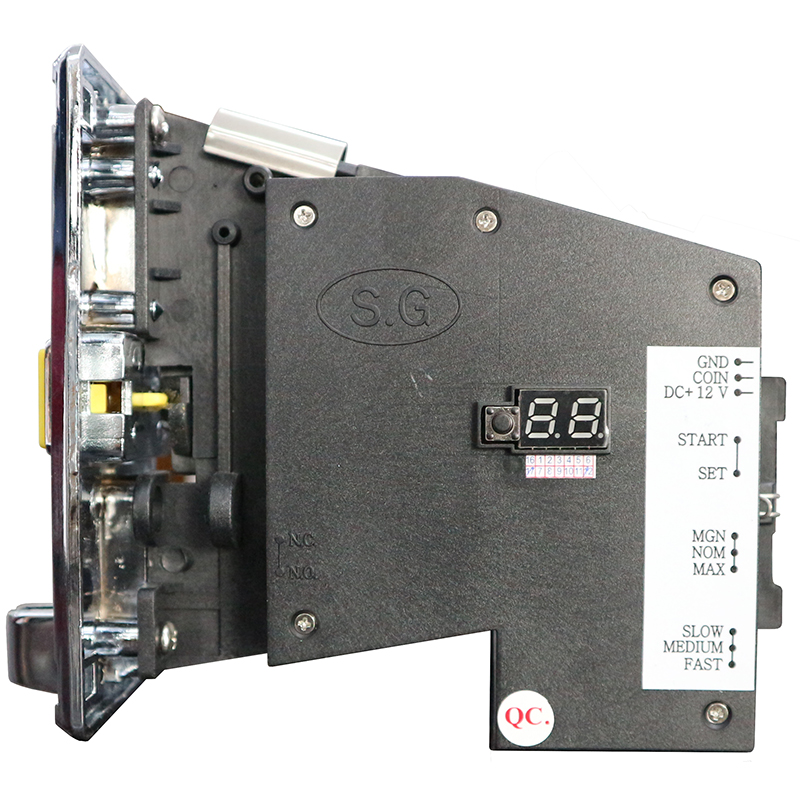

- Turn “START” switch 5 to “SET” position And “SENSITIVITY” 6 to “NOR”. LED display show “00 “
- Press switch 2 to select number of value for program. The number show on display 3 represent coin value. Display show “1” = 10 cents ; “2” = 20 cents ; “5” = 50 cents ; “10” = $1
- Slowly insert 1 coin at a time after 15 coins been inserted. The Display show “F” with Beeb twice, and Display return to “0” the first channel program completed.
- To program next channel with different value, Repeat step 2
- Turn “START” switch 5 back to “START” and the display show number of stored channel few second then return to “0” The coin machine ready to work
Erase All Programs
- Turn “START / SET” switch 5 to “SET” position
- Press switch 2 to select coin value need to be erase
- Press and Hold switch 2 until “BEEP” and display show “0”
- Return switch 5 back to “START”
Erase Single Coin Program
- Turn “START / SET” switch 5 to “SET”
- Press and hold 2 switch
- Return switch 5 back to “START”
Wire Connection
Wiring and Plug in connector to the header
