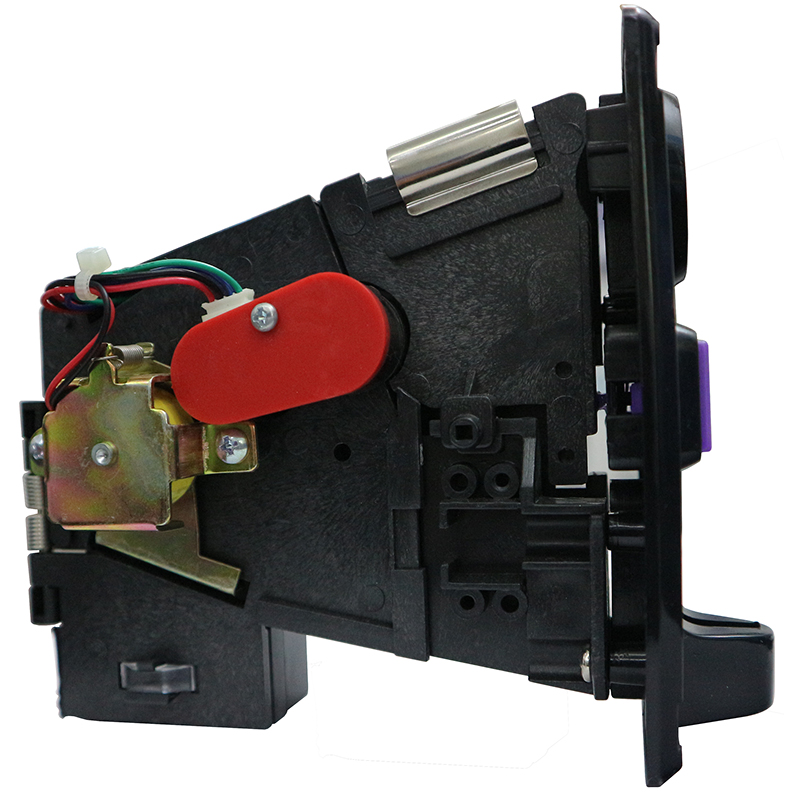

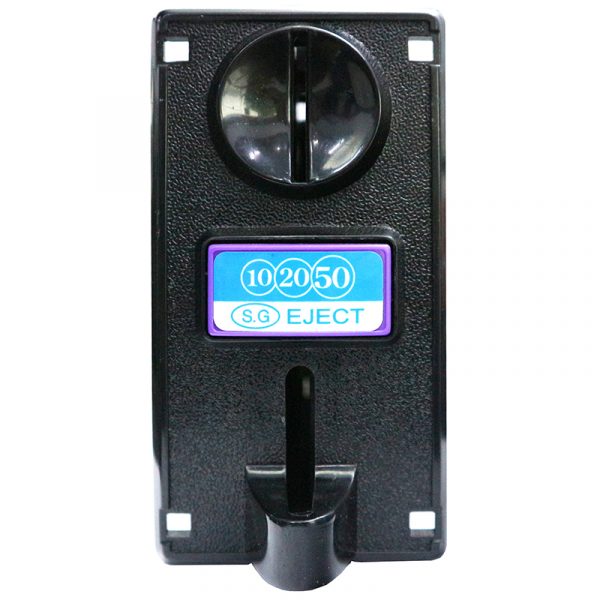

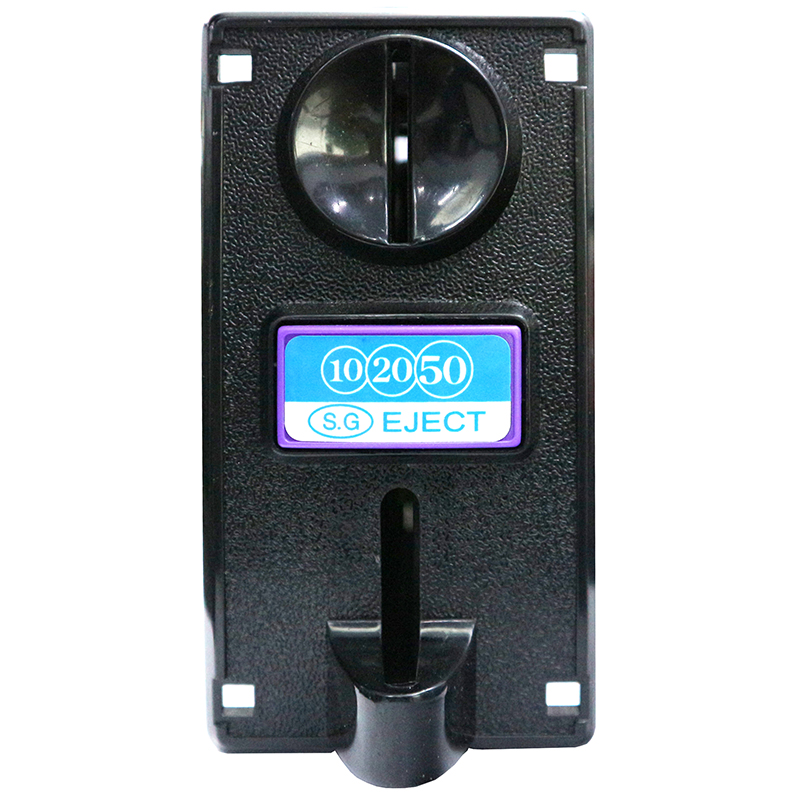

SG-777 Operation Manual
Introduction of Main Function
- Using the intelligent CPU system, automatically identify the coin by material, thickness and diameter.
- Can set up 4 different values. Every value setting with 10 coins / value. Each value 3 times setting.
- High sensitivity for continuous used.
Setting Instruction of Product

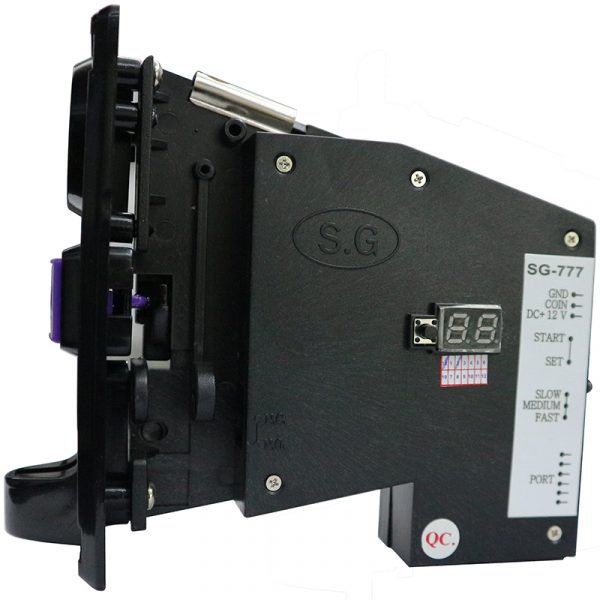

- Turn the START switch to “SET” position. LED display showing “00”
- Delete previous program. Press and hold Tac switch until “BEEP” and display show “C” then change to “O”. After that turn switch to “MEDIUM”.
- Begin setting coin value. Press Tac switch one time to set coin in value “1”, display show “1”, insert coins until fast “BEEP” sound. The program will automatically advance to next coin value. Continue insert appropriate coin value. Until the end of program, LED display will show “0”. Coins value run in sequence begin from 1,2,5,10.
- To exit, up Turn the START switch to “START” position.
- To deleting coin program, repeat step 1 and 2. Select value to delete by press Tac Switch. Press and Hold Tac Switch until and display show “C”
Standards and Operation Instruction
| Apply to coin’s diameter | 18m/m – 29m/m |
|---|---|
| Apply to coin’s thickness | 1.2m/m – 3.0m/m |
| Work Voltage | DC12V_+20% |
| Temperature | 20°C- 50°C |
- Switch to the correct speed (pulse) of coin machine
FAST : 25ms (short pulse signal)
MEDIUM : 45ms (medium pulse signal)
SLOW : 65ms (long pulse)
Please turn on power about 10 minutes before using or setting, you can get the optimal effect
2. Connecting instructions of connector:
